High Precision 304 Stainless Steel Electromagnetic Flowmeter OEM DN10-1000 for Chemical and Water Applications

Product Description

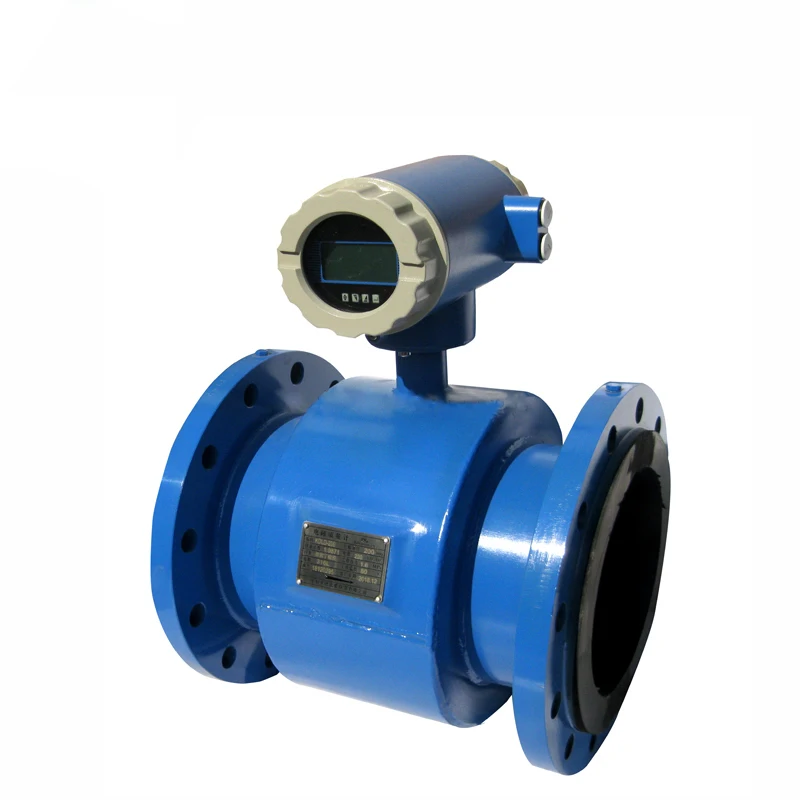

Electromagnetic Flow meter

Variety of power supply methods 220VAC/ 24VDC/battery and signal output using RS485 serial communication interface, and support MODBUS/RTU protocol, GPRS and other way of communications as well as accumulative pulse output. It is widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries

Electromagnetic flow meter

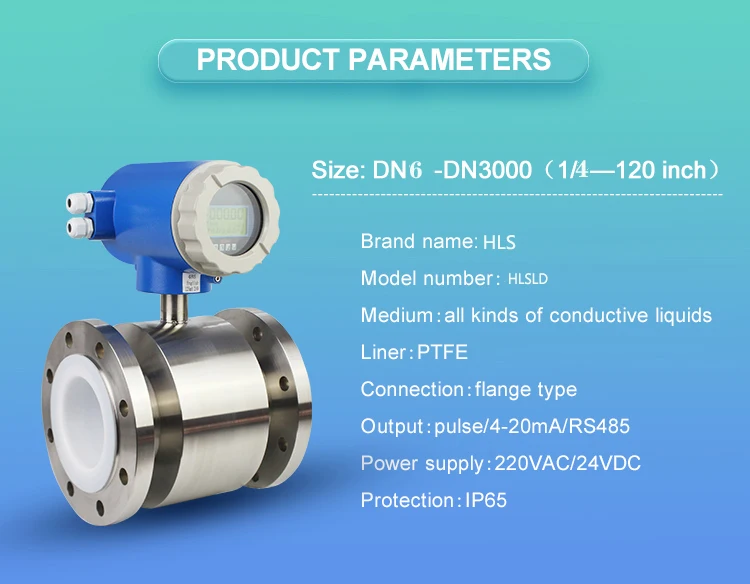

Performance	Technical Parameters
Nominal diameter	DN3——DN3000mm
Accuracy	±0.5% of indicated value, optional ±0.3% or ±0.2% of indicated value
Display	HD LCD, instantaneous flow, cumulative flow, etc
Language	Chinese, English, Spanish, Russian, etc.; minor languages can be customized
Signal output	Pulse; 4~20mA
Communication	RS485, GPRS, Hart
Lining material	Polytetrafluoroethylene, PFA, F46, neoprene, polyurethane rubber, high temperature rubber
Electrode material	SUS316, Hastelloy B/C, titanium, tantalum, platinum-iridium alloy, stainless steel coated with tungsten carbide
Electrode form	Standard type, scraper type, replaceable type
Connection method	Flange connection, plug-in connection, clamp connection, thread connection, flange clamp connection
Medium temperature	Integrated Split	-20℃～+60℃
				Neoprene lining, polyurethane lining	-10℃～+80℃
				PTFE lining, PFA lining, F46 lining	-10℃～+160℃
Nominal pressure	0.6～4.0Mpa - special pressure can be customized
Ambient temperature	-25℃～+60℃
Environment humidity	5～100%RH - relative humidity
Dielectric conductivity	≥20μs/cm
Measuring range	1500: 1 Flow velocity setting<15m>

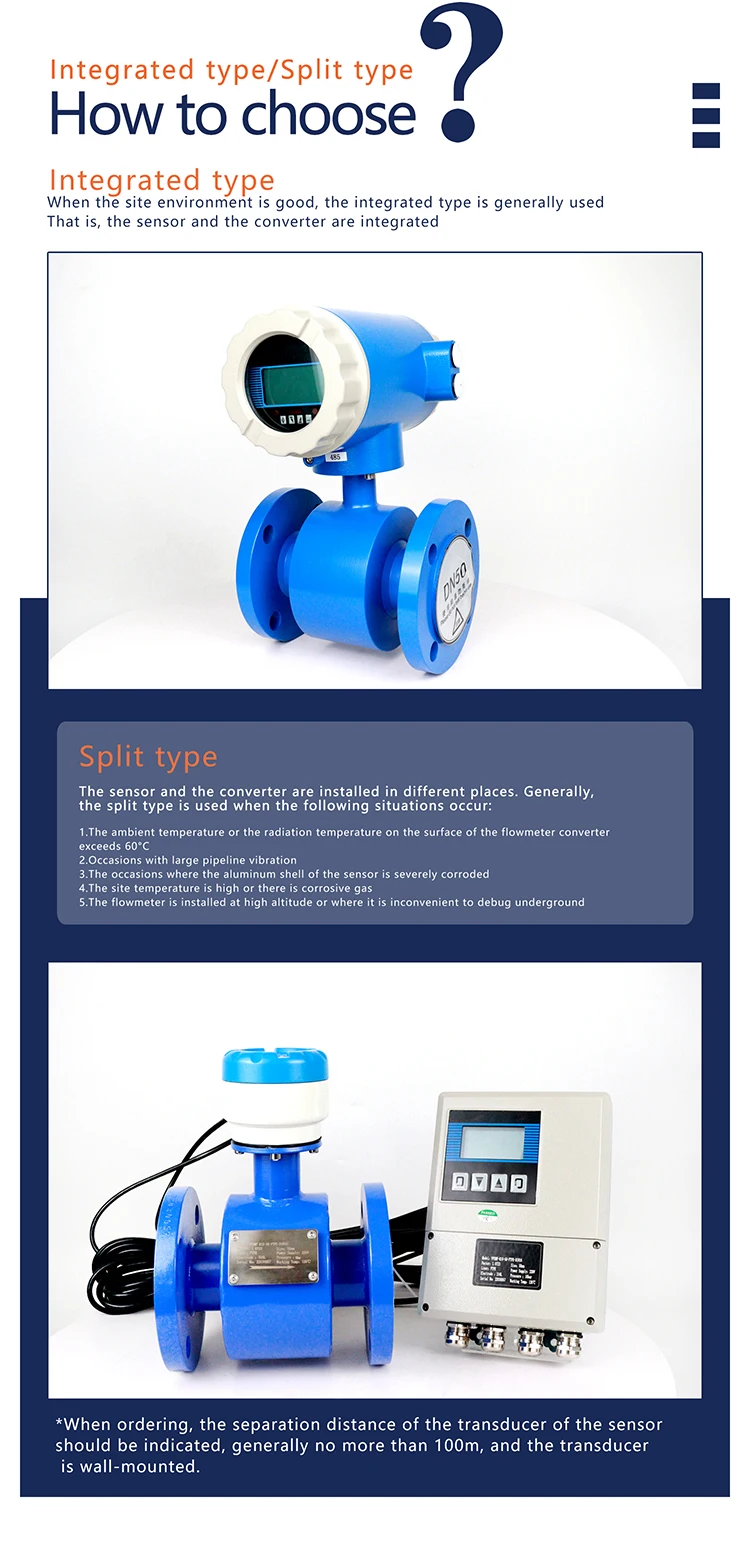

Structure type	Integrated type, split type, immersion type, explosion-proof type
Protection level	IP65, IP68 optional
Explosion-proof mark	ExmdIIT 6

Other Lining material:
Lining material	Main Performance	Applications
PTFE	1. The most steady material in plastics which is resistant to boiling hydrochloric acid, vitriol and qua fortis as well as strong alkali and organic impregnates	Strong corrosive mediums such as strong acid and alkali
			2. Not be perfect in abrasion resistance
PFA	Having the same abrasion resistance with PTFE	Applicable in state of load pressure
			Having strong ability of load pressure resistance
Neoprene	1. Be of good elasticity, Retractility and abrasion resistance	Water, sewage and slurry, mineral
			2. Be resistant to low acid, alkali and salt but not for oxidation mediums
Polyurethane	1. Be of good abrasion Resistability	Applicable in mineral Serosity, slurry
			2. Not be perfect in acid/alkali resisitance
			3. Can't be used for water mixed with organic impregnant

Relational production

VR

Contact US

After Sales Service

We promise to deliver the following after-sales service:

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty

Packaging&shipping

FAQ

Q1: Can you accept OEM service

A:We professional provide OEM service for electromagnetic flow meter

Q2: Could I get samples

A:Yes, we can arrange production and delivery as soon as possible to help you get the sample

Q3:How about the quality of the magnetic flow meter

A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment, we'd provide factory certification test to you

Q4: Could you provide me the shortest lead time

A:Generally delivery is 2-3 working days after received payment, if urgently required, we will try our best to satisfy you.

Q5: Could I visit your factory

A:Welcome to visit us, we will guide your visit in our factory

Q6:What is your MOQ

A:To start our cooperation, sample order is acceptable

KAMBODA’s High Precision 304 Stainless Steel Electromagnetic Flowmeter OEM DN10-1000 is built for reliable measurement in chemical and water applications. It delivers accurate flow readings with consistent performance, making it a dependable choice for various industrial settings. The flowmeter is designed to handle a wide range of pipe sizes from DN10 to DN1000, so it adapts to small lines as well as large process networks without losing accuracy. Users will find the stainless steel 304 body durable and resistant to corrosion, which is essential for long-term use in challenging environments.

Precision is a key feature of this instrument. The electromagnetic sensing technology provides stable outputs even at low flow rates. Because the sensor measures the flow of conductive liquids directly, there is no obstruction or moving parts that might wear out over time. This reduces maintenance needs and downtime significantly. The OEM design allows easy integration into existing control systems. Whether you need a compact unit for tight spaces or a larger model for central monitoring, the modular design of the KAMBODA flowmeter supports flexible installation.

The electronics are engineered for industrial accuracy. The signal processing unit filters noise and compensates for variations, improving repeatability and reducing drift. This makes the device suitable for precise dosing, billing, and quality control applications. It also supports both analog and digital outputs, enabling connection to PLCs, SCADA systems, and data loggers. Users can choose the output that fits their system architecture, whether they prefer 4-20 mA, pulse output, or digital communications like Modbus. Such connectivity simplifies integration and helps maintain seamless operations across plant systems.

Durability and material selection were considered carefully. The 304 stainless steel wetted parts resist many corrosive agents found in chemical processing and municipal water handling. The smooth inner surface minimizes particle adhesion and reduces the chance of fouling. For applications with abrasive or particulate-laden fluids, the robust construction extends service life. Sealing and gasket materials are chosen to match typical media, lowering the risk of leaks. This contributes to a safer working environment and reduces maintenance costs over the life of the device.

Installation is straightforward with clear mounting options. The flowmeter accepts standard flanges and can be supplied with a range of end connections to match existing piping. Its compact sensor makes retrofit projects simpler, and the lightweight electronics housing helps in places where access is limited. Calibration is done at the factory to ensure accuracy upon installation, and field recalibration procedures are included for ongoing verification. Technicians will appreciate the clear access points for wiring and the logical terminal layout.

Operation is user-friendly. The display provides real-time flowrate and totalized volume readouts, with intuitive menus for configuration. For sites that prefer remote monitoring, the device supports wireless or wired telemetry depending on the chosen model. Alarm outputs and status indicators help operators respond quickly to abnormal conditions. The flowmeter can record flow history and event logs, aiding troubleshooting and process optimization. These features make it useful for plant engineers, process technicians, and maintenance teams who need dependable data and straightforward controls.

Safety and compliance are part of the design. The KAMBODA flowmeter adheres to common industry standards for electromagnetic flowmeters and electrical safety. Material certifications and traceability are provided for quality assurance. When used in chemical plants or municipal water systems, meeting regulatory expectations is critical, and this product is accompanied by the documentation needed for audits and inspections. The sealed electronics protect against dust and moisture ingress, while grounding and shielding minimize electrical interference in noisy environments.

Performance in diverse applications is a highlight. In water treatment plants, it supports accurate billing, leak detection, and process control. In chemical processing, it measures corrosive or conductive liquids with precision, supporting mixing ratios and batch control. HVAC systems benefit from reliable flow measurement for energy management, and food and beverage plants use the flowmeter where sanitary practices are required and where gentle handling of fluids is preferred. The broad DN10-1000 range allows one product line to service multiple departments or facilities, simplifying procurement and spare parts management.

Support and customization options are available. As an OEM-focused product, the KAMBODA flowmeter can be tailored to specific requirements, such as custom flanges, special electronics options, or pre-configured communication protocols. Technical support helps with sizing, selection, and commissioning. Spare parts and service kits reduce downtime by making maintenance predictable and fast. Training materials and manuals are provided to help operations and maintenance staff become proficient quickly.

The KAMBODA High Precision 304 Stainless Steel Electromagnetic Flowmeter OEM DN10-1000 combines accuracy, durability, and flexibility for chemical and water applications. It offers precise, low-maintenance flow measurement across a wide size range, with robust materials and adaptable electronics. The product supports modern digital connectivity and is designed for easy installation, reliable long-term operation, and regulatory compliance. Whether for new installations or retrofits, this flowmeter delivers dependable performance that helps maintain process control, improve efficiency, and reduce operational costs.
