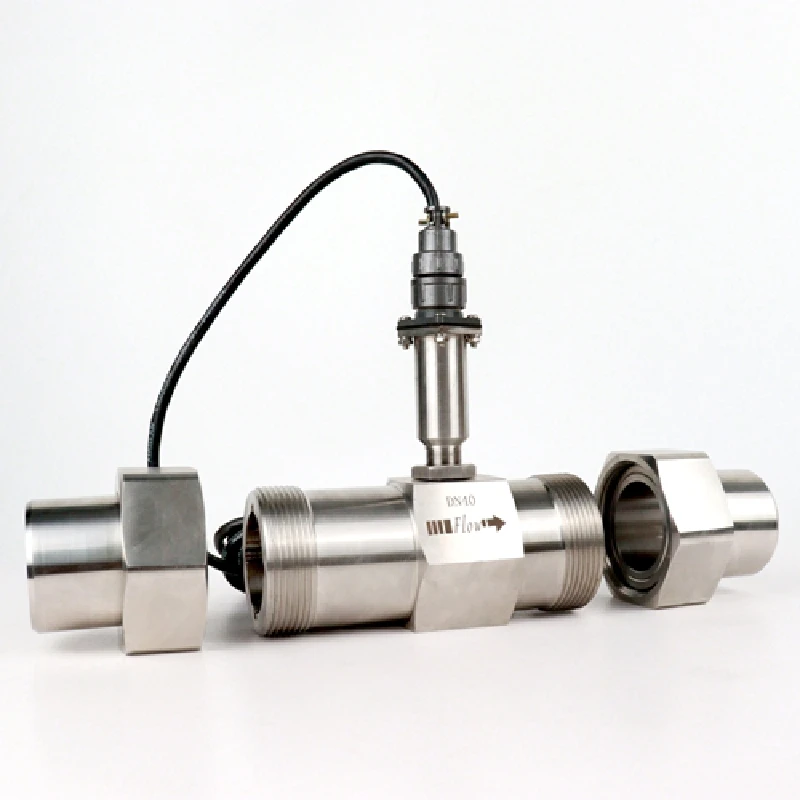

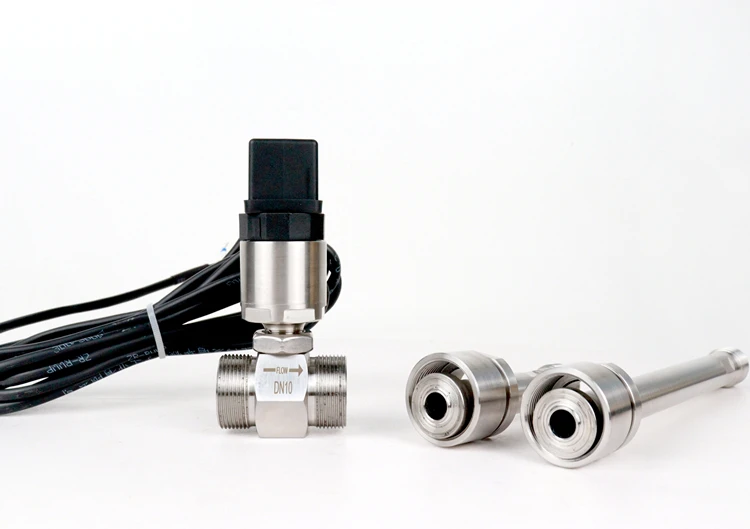

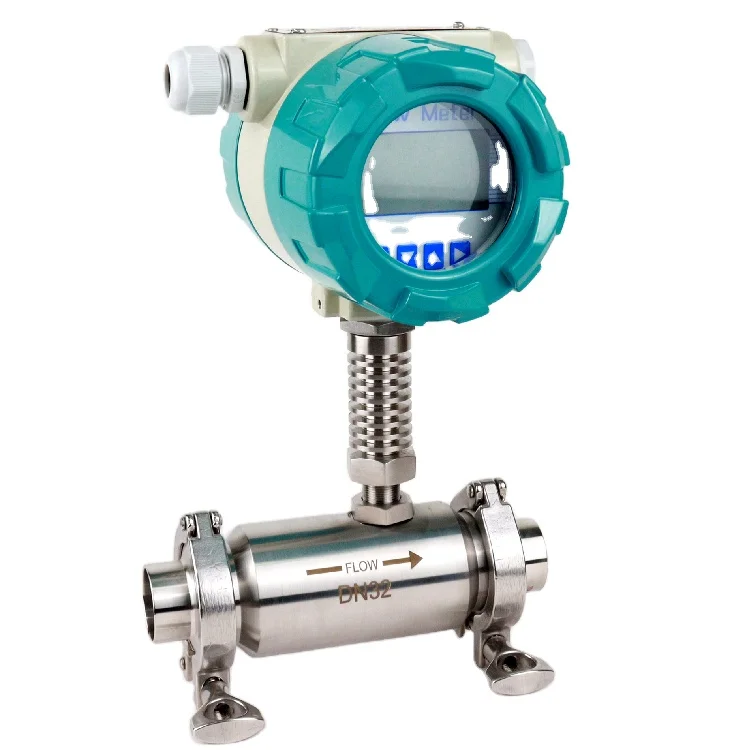

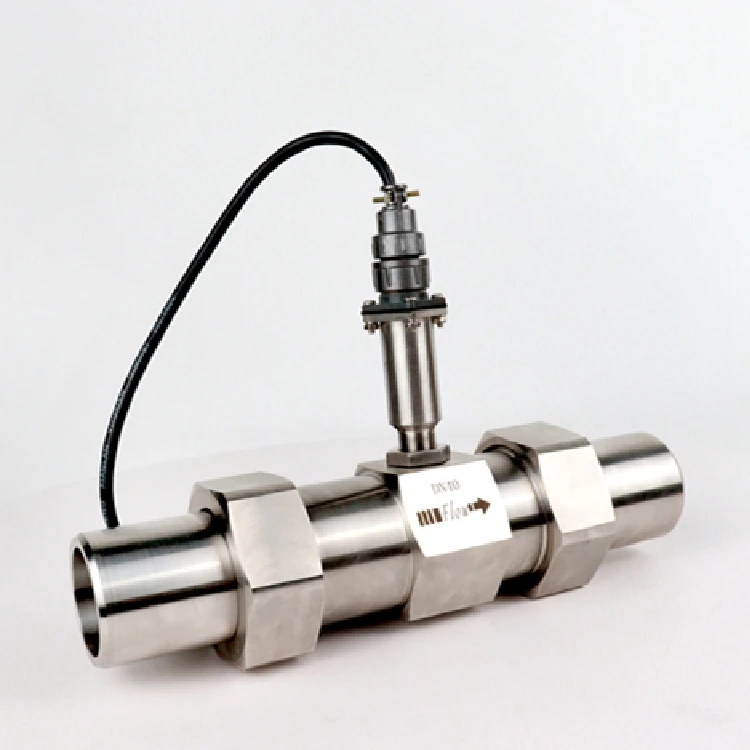

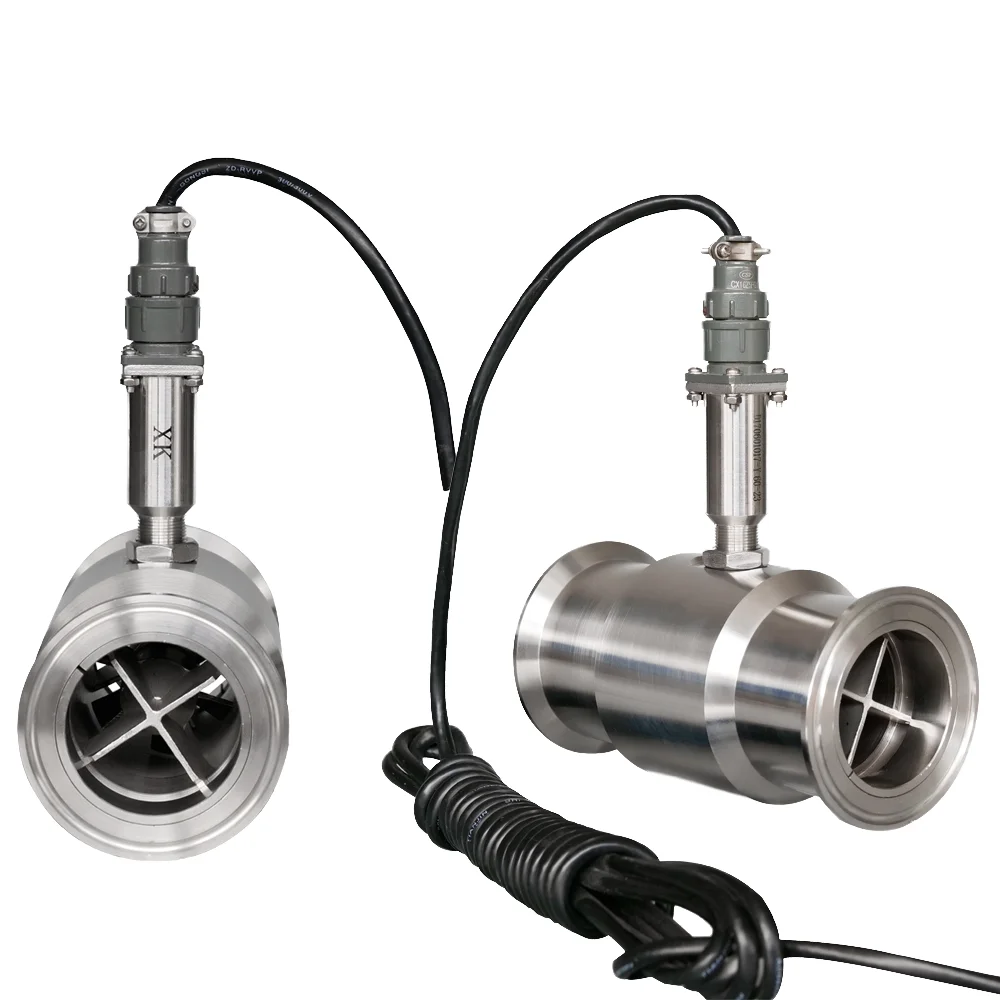

turbine flowmeter
Suitable Medium:Tap water, pure water, alcohol; gasoline, diesel, kerosene, hydraulic oil, LPG;and any pure liquid without any acid corrosion with flow viscosity under 5x10-6 m2/s.
Features:
(1) Widely measuring range, less pressure loss, strong impact resistance of impeller.
(2) Outstanding accuracy and longer life at an affordable price. (3) Compact and light weight structure, convenient installation and maintenance, extensive application ability.
(4) Display instantaneous velocity and total flow.
(5) Pulse frequency signal output, available for overall calculation and computer connection
Turbine Flow Meter Technical Index |
|
Nominal diameter: |
DN25-- DN200 |
|
Accuracy class: |
±1.0%R 0.5% Selectable |
|
Rated Pressure: |
1.6MPa~6.3MPa |
|
Medium temperature: |
-20 ℃ ~ +200℃ |
|
Relative humidity: |
5% to 95% |
|
Range Ration: |
1:10,1:15,1:20 |
|
Power supply: |
3.6V lithium battery; 12VDC; 24VDC; |
|
Signal output: |
4-20mA /RS485/HART |
|
Ingress protection : |
IP65 or higher customerized |
|
Explosion Proof Grade: |
ExdIIBT6/ExiaIICT4 |
|
Main Application: |
Non Corrosive Liquid Water, Ethanol, Diesel etc |
|
After Sales Service. We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty
Q:Could I get samples
A:Yes, we have materials in stock to help you to get the samples as soon as we can
Q:How is the price
A:As we believe the quality is the most important, we will provide the best quality pressure sensor we can with reasonable price
Q:Could you provide me the shortest lead time
A:We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you
Q:Could I visit your factory
A: Sincerely invite you to visit our factory
Q:Can I have my own logo of the products
A:Of course. We provide OEM services. The products’ material, dimensions, color, etc. will according to your requirement
Q: How about the Warranty time
A:Our warranty time is 12 months after you get our goods. All lifelong technology service and support
KAMBODA High Precision 2 Inch Water Flow Meter with 4-20mA Pulse Output is a reliable tool designed for professionals working from home who need accurate measurement of diesel fuel and other liquids. This sturdy meter delivers consistent results and fits well in small workshops, home garages, and remote monitoring setups. It brings industrial-grade accuracy into a compact package that is easy to install and simple to use
The meter measures flow in a two-inch line, making it suitable for many typical fuel and liquid transfer tasks. It offers high precision, reducing uncertainty in readings and helping users track usage, manage inventory, and bill accurately. The clear output options include both a 4-20mA signal for continuous monitoring and a pulse output for counting or integration into digital systems. These outputs let users connect the meter to common controllers, data loggers, and remote monitoring platforms without complex conversions
Durability is a strong point for KAMBODA’s design. The meter body is built to withstand regular use with fuels like diesel and other non-corrosive liquids. It resists wear and maintains performance over time. The internal mechanism ensures stable readings even when flow conditions vary. That stability is vital for anyone who must rely on repeated measurements — such as service professionals, small fleet operators, or home-based technicians who manage fuel for equipment
Installation is straightforward, saving time and reducing installation costs. The 2-inch size fits standard piping. It includes threaded connections that match common fittings, so swapping the meter into an existing line is fast. The meter is compact and balanced so it does not place undue strain on piping, and it can be mounted in different orientations depending on space and piping layout. Clear labeling on the unit helps installers connect wires correctly and configure systems quickly
Operation is intuitive. The meter produces a clean 4-20mA analog signal that represents the flow rate continuously. That makes it easy to feed into a PLC, display, or data acquisition system for monitoring real-time flow. The pulse output provides discrete counts for totalizer functions. Together, these outputs support both instantaneous flow monitoring and cumulative volume tracking. Users can choose the best method for their application or use both simultaneously for redundancy
Accuracy matters and KAMBODA focuses on precision. This meter is engineered to deliver tight tolerances across a common operating range. That accuracy translates to better control over fuel usage, fewer discrepancies in inventory records, and more dependable billing when fuel is dispensed. For professionals working from home, dependable accuracy helps run small businesses more confidently and saves money by identifying leaks or inefficiencies sooner
Maintenance requirements are low. The meter’s design minimizes clogging and wear from particulates typical in diesel and other fuels. Periodic checks and simple cleaning keep it performing well. Replacement parts are readily available and the meter’s serviceability means less downtime. For users who rely on uninterrupted measurements, this contributes to smooth operations and consistent data quality
The device also supports varied use cases. It works well for fuel transfer stations, home fuel storage systems, small fleet refueling points, and workshops that measure coolant or other liquids. Its compact two-inch size is versatile for medium-flow applications where larger meters are impractical. The pulse output pairs well with basic counters, while the 4-20mA output is ideal for more advanced setups, including remote monitoring with cellular gateways or integration into smart home networks used by home-based professionals
Safety and compliance are part of the design. The meter materials are chosen to be compatible with diesel and similar liquids, reducing the risk of degradation that could lead to leaks. The secure connections and robust housing help prevent accidental damage. Clear documentation makes it easier to follow best installation and use practices, which is important for anyone working alone or without immediate onsite technical support
KAMBODA provides practical support and documentation to help users get started. Installation guides explain wiring for the 4-20mA and pulse outputs, outline mounting options, and include troubleshooting tips. For home-based professionals who may not have a full maintenance team, these resources reduce setup time and help resolve common issues quickly
The KAMBODA High Precision 2 Inch Water Flow Meter with 4-20mA Pulse Output is a practical, accurate, and durable choice for professionals working from home who need reliable measurement of diesel and other liquids. It blends easy installation, low maintenance, and flexible output options into a compact meter that supports both simple and advanced monitoring setups. The meter gives precise data for managing fuel use, tracking volume, and integrating with monitoring and control systems. It is a cost-effective solution for accurate flow measurement in small-scale, professional home operations
