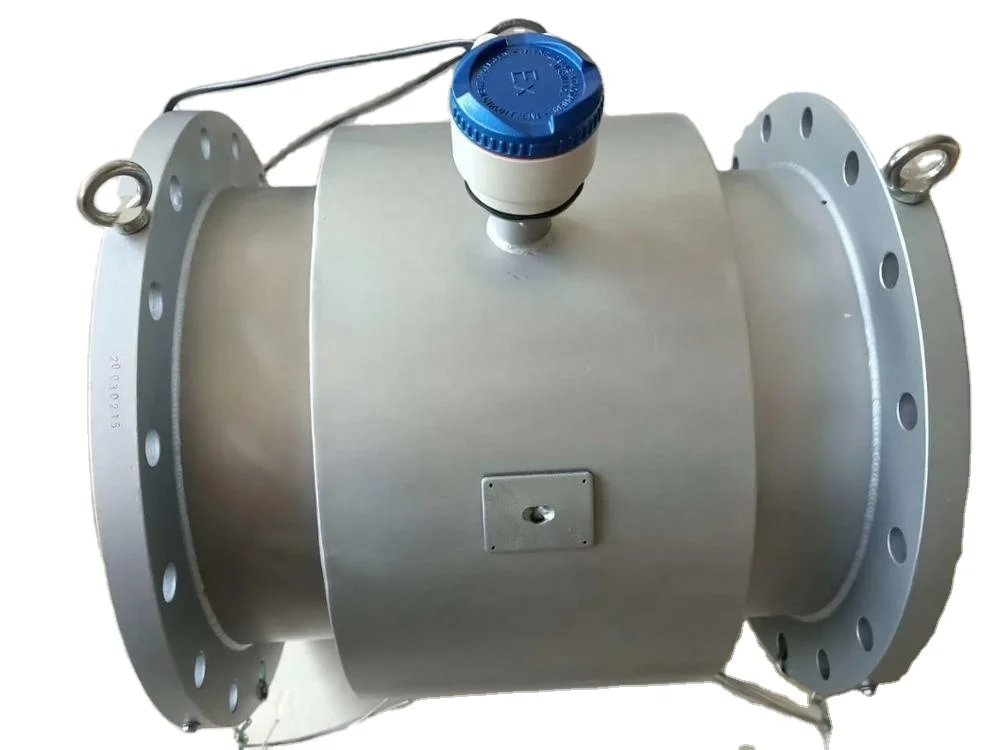

DN1200 Digital Electromagnetic Flow Meter Transmitter Liquid Industrial Temperature Sensor Magnet 0.5% Accuracy IP65/IP68 Flange

Product Description

Electromagnetic Flow meter

Variety of power supply methods 220VAC/ 24VDC/battery and signal output using RS485 serial communication interface, and support MODBUS/RTU protocol, GPRS and other way of communications as well as accumulative pulse output. It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Paper making, water supply and drainage, food, medicine and other industries

Electromagnetic flow meter
Performance	Technical Parameters
Nominal diameter	DN3——DN3000mm
Accuracy	±0.5% of indicated value, optional ±0.3% or ±0.2% of indicated value
Display	HD LCD, instantaneous flow, cumulative flow, etc
Language	Chinese, English, Spanish, Russian, etc.; minor languages can be customized
Signal output	Pulse; 4~20mA
Communication	RS485, GPRS, Hart
Lining material	Polytetrafluoroethylene, PFA, F46, neoprene, polyurethane rubber, high temperature rubber
Electrode material	SUS316, Hastelloy B/C, titanium, tantalum, platinum-iridium alloy, stainless steel coated with tungsten carbide
Electrode form	Standard type, scraper type, replaceable type
Connection method	Flange connection, plug-in connection, clamp connection, thread connection, flange clamp connection
Medium temperature	Integrated Split	-20℃～+60℃
				Neoprene lining, polyurethane lining	-10℃～+80℃
				PTFE lining, PFA lining, F46 lining	-10℃～+160℃
Nominal pressure	0.6～4.0Mpa - special pressure can be customized
Ambient temperature	-25℃～+60℃
environment humidity	5～100%RH - relative humidity
Dielectric conductivity	≥20μs/cm
Measuring range	1500: 1 Flow velocity setting<15m>

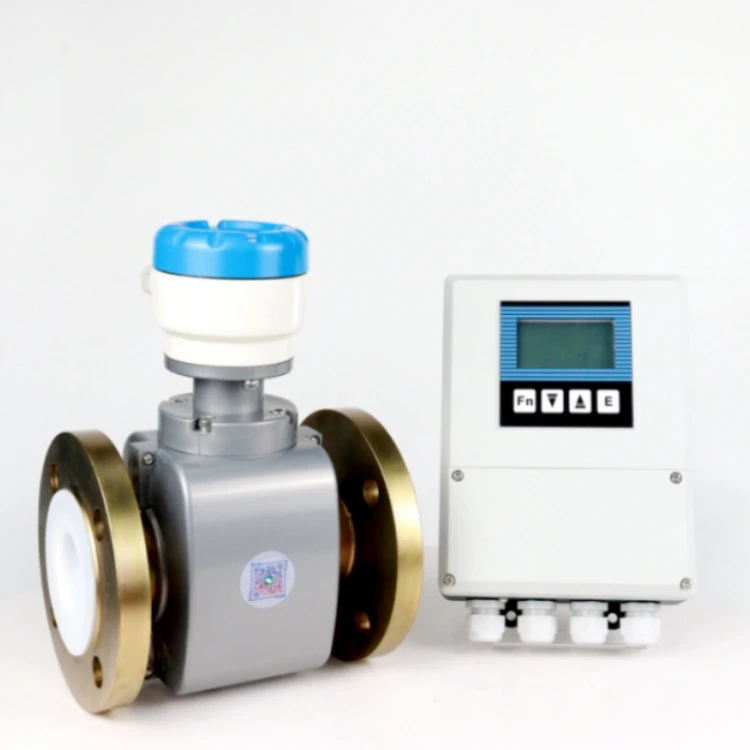

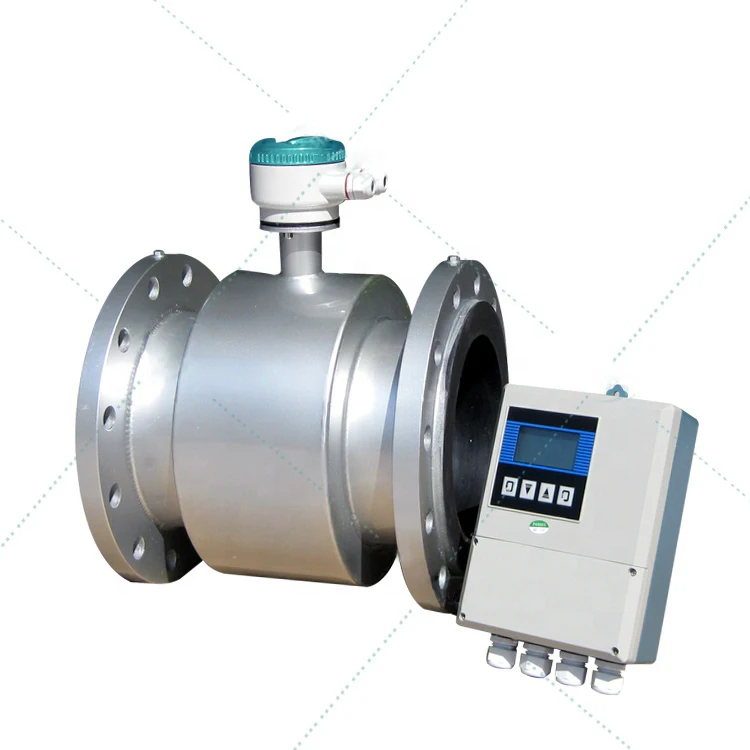

Structure type	Integrated type, split type, immersion type, explosion-proof type
Protection level	IP65, IP68 optional
Explosion-proof mark	ExmdIIT 6

Other Lining material:
Lining material	Main Performance	Applications
PTFE	1. The most steady material in plastics which is resistant to boiling hydrochloric acid, vitriol and qua fortis as well as strong alkali and organic impregnates	Strong corrosive mediums such as strong acid and alkali
			2. Not be perfect in abrasion resistance
PFA	Having the same abrasion resistance with PTFE	Applicable in state of load pressure
			Having strong ability of load pressure resistance
Neoprene	1. Be of good elasticity, Retractability and abrasion resistance	Water, sewage and slurry, mineral
			2. Be resistant to low acid, alkali and salt but not for oxidation mediums
Polyurethane	1. Be of good abrasion resistibility	Applicable in mineral Serosity, slurry
			2. Not be perfect in acid/alkali resisitance
			3. Can't be used for water mixed with organic impregnants

Relational production

Contact US

After Sales Service

We promise to deliver the following after-sales service:

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty

packaging&shipping

FAQ

Q1: Can you accept OEM service

A:We professional provide OEM service for electromagnetic flow meter

Q2: Could I get samples

A:Yes, we can arrange production and delivery as soon as possible to help you get the sample

Q3:How about the quality of the magnetic flow meter

A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment, we'd provide factory certification test to you

Q4: Could you provide me the shortest lead time

A:Generally delivery is 2-3 working days after received payment, if urgently required, we will try our best to satisfy you.

Q5: Could I visit your factory

A:Welcome to visit us, we will guide your visit in our factory

Q6:What is your MOQ

A:To start our cooperation, sample order is acceptable

KAMBODA’s DN1200 Digital Electromagnetic Flow Meter Transmitter is a reliable and precise instrument designed for industrial liquids and tough environments. Professionals working from home and field technicians alike will appreciate its blend of durable construction, accurate measurement, and easy-to-use features. Built to handle demanding applications, this flow meter combines modern digital electronics with proven electromagnetic measurement principles to deliver consistent performance you can trust.

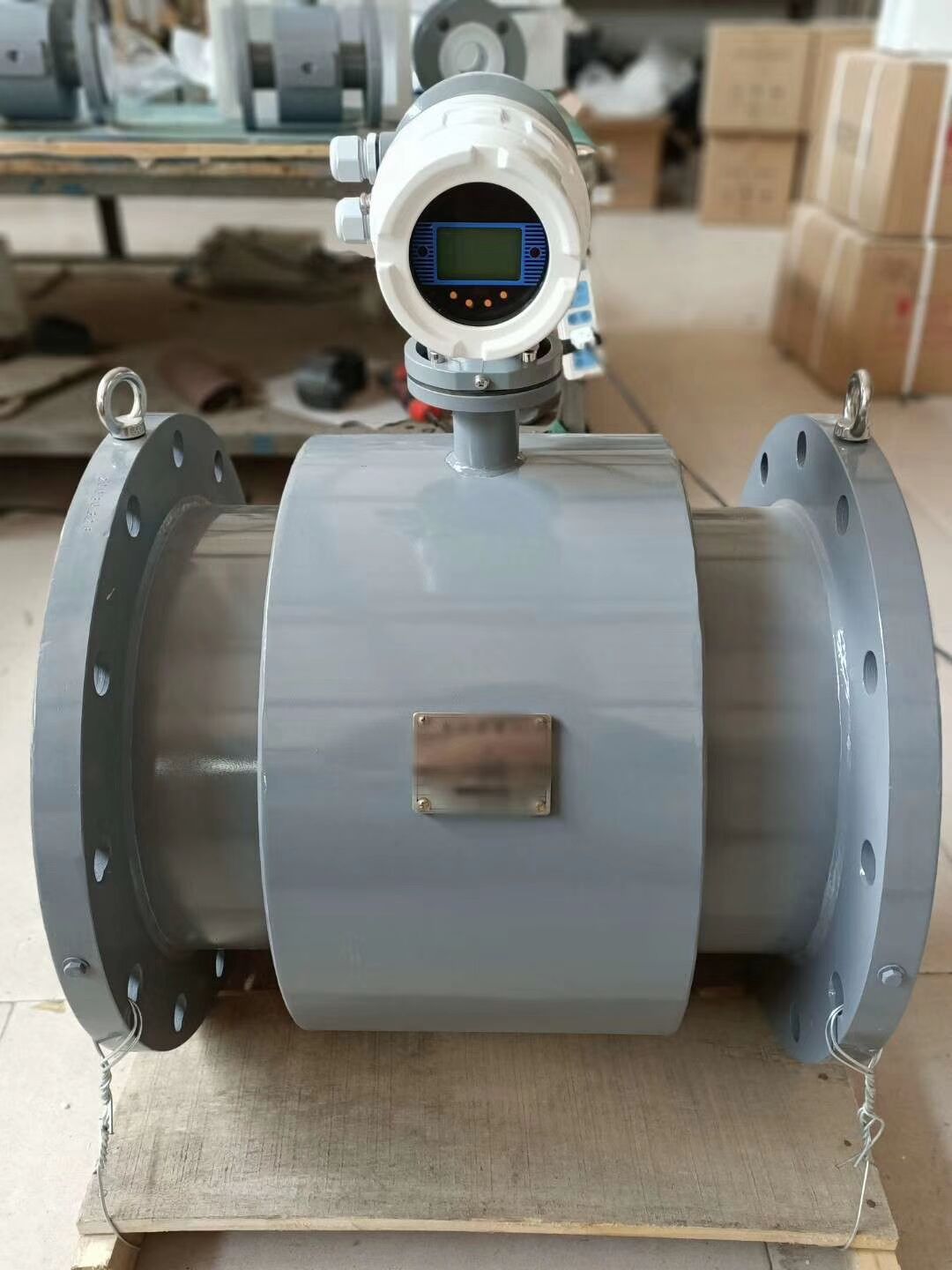

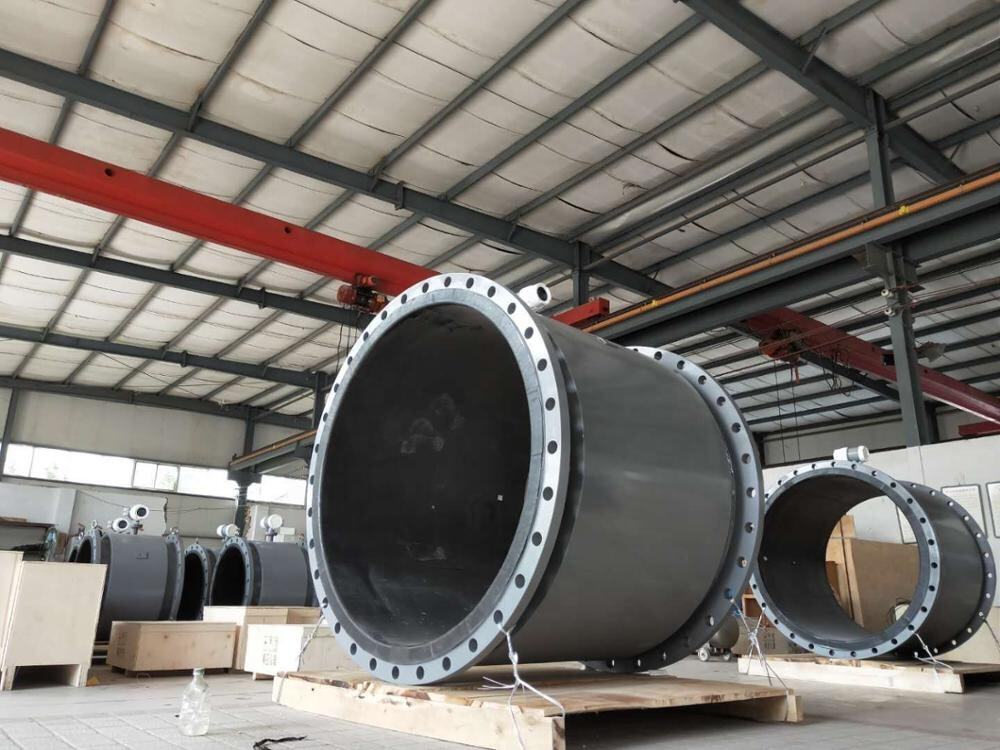

This DN1200 model features a large-diameter flow tube and a robust flange connection, making it suitable for a variety of piping systems. The flow sensor uses electromagnetic technology, which means it measures liquid flow without moving parts. That results in lower maintenance, increased reliability, and long-term stability. It works well with conductive fluids and is ideal for water, wastewater, slurries, chemicals, and other industrial liquids where non-invasive, accurate flow measurement is required.

Accuracy is a standout attribute of the KAMBODA DN1200. With 0.5% accuracy, this flow meter provides tight measurement tolerances that help ensure process control and billing precision. Whether you are monitoring process flows, managing water usage, or controlling chemical dosing, the accuracy helps reduce waste and improve overall system efficiency. The transmitter processes sensor signals using advanced digital algorithms, producing clear, stable flow readings even in variable conditions.

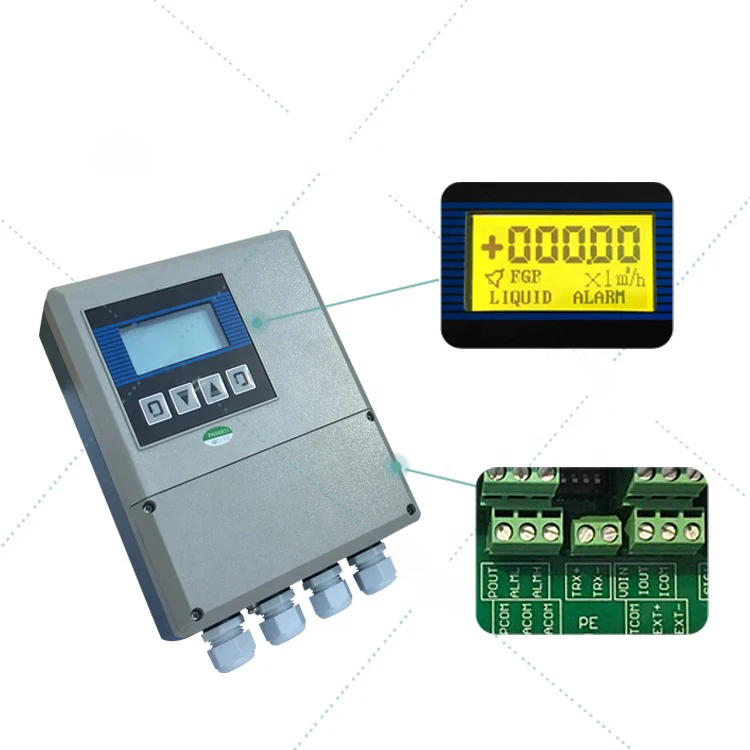

The digital transmitter offers easy reading and configuration. It provides clear output signals that integrate with PLCs, SCADA systems, and other industrial automation platforms. Multiple communication options are available, allowing seamless connection to existing control systems. The transmitter also supports local display and configuration, so technicians can calibrate and troubleshoot on site without extra tools.

Temperature sensing is integrated into the design, ensuring the meter performs accurately across a range of liquid temperatures. The built-in temperature sensor helps compensate measurements and provides additional data for process control. This is particularly useful in industries where temperature affects fluid properties, such as chemical processing, food and beverage, and heating and cooling systems.

For protection in harsh conditions, the DN1200 carries high ingress protection ratings. With IP65/IP68 sealing, the flow meter is dust-tight and protected against water jets, and it can withstand temporary submersion. This level of protection makes it suitable for outdoor installations, wash down areas, and environments with high moisture or particulate exposure. The rugged construction extends the service life and reduces downtime.

Installation is straightforward thanks to standard flange connections that match common piping specifications. The DN1200 is designed to fit into existing systems with minimal modification, saving installation time and reducing system disruption. The flow meter’s compact transmitter housing simplifies mounting and wiring, while durable materials ensure resistance to corrosion and mechanical stress.

KAMBODA focused on practical usability. The unit’s user interface is intuitive, offering straightforward menus for parameter setup and diagnostics. Field personnel can perform adjustments and view measurements quickly. The transmitter stores calibration settings and supports remote monitoring, which eases maintenance and enhances operational oversight.

Safety and compliance are built into the design. Materials in contact with the flowing media are selected for chemical compatibility and sanitary considerations when needed. The electromagnetic measuring principle is intrinsically safe for many conductive fluids because it does not introduce heat or mechanical interference into the flow stream.

The DN1200 is energy efficient and designed for continuous operation. The electronics are engineered to maintain stable performance over long periods, reducing drift and the need for frequent recalibration. This reliability lowers total cost of ownership and supports uninterrupted production or monitoring processes.

KAMBODA provides technical support and documentation to help you get the most from the DN1200 Digital Electromagnetic Flow Meter Transmitter. Detailed manuals cover installation, configuration, and maintenance. Spare parts and service options are available to ensure your system remains operational and accurate.

The KAMBODA DN1200 Digital Electromagnetic Flow Meter Transmitter is a robust, accurate, and user-friendly solution for industrial liquid flow measurement. With 0.5% accuracy, integrated temperature sensing, IP65/IP68 protection, and flange compatibility, it meets the needs of professionals working from home who manage systems remotely as well as field technicians who install and maintain equipment on site. The combination of durability, precision, and straightforward integration makes it a smart choice for water treatment, chemical processing, manufacturing, and other industrial sectors where dependable flow measurement is essential.
