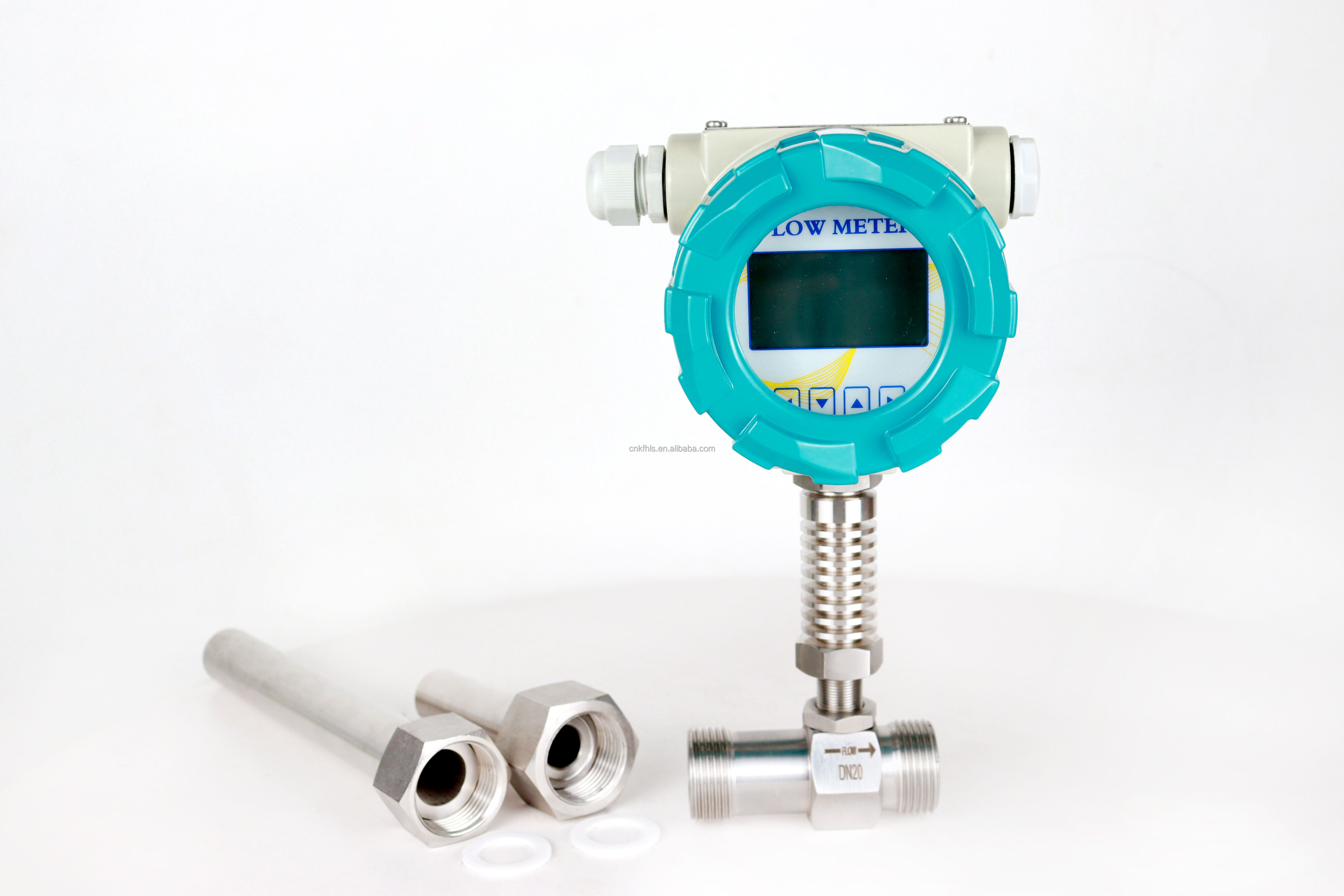

Digital Stainless Steel Water Flow Meter DN15/DN20/DN25/DN50 Thread Connection LCD Display Control 485 Signal OEM

Product Description

Product Parameters

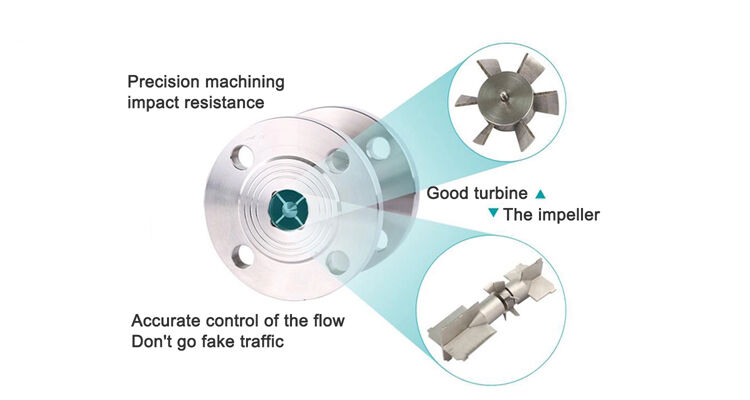

Instrument Material	Sensor:SS304 (SS316) ; Impeller: 2Cr13 ; Guide: SS304 ; Bearing: YS8 Alloy (special material can be customized
Conditions of use	Environment temperature: -30℃—60℃
		Medium temperature: -20~+80℃/+120℃
Pressure Level	Threaded connections:2.5-6.3MPa High pressure can be customized
		Flange connections :1.6-4.0MPa High pressure can be customized
		Clamp connections :1.0MPa
Power Suppiy	3.6V lithium battery can be used continuously for 3 years /12-24VDC
Power Consumption	≤1W
Signal Output	Pulse / 4-20mA / RS485 Modbus-RTU

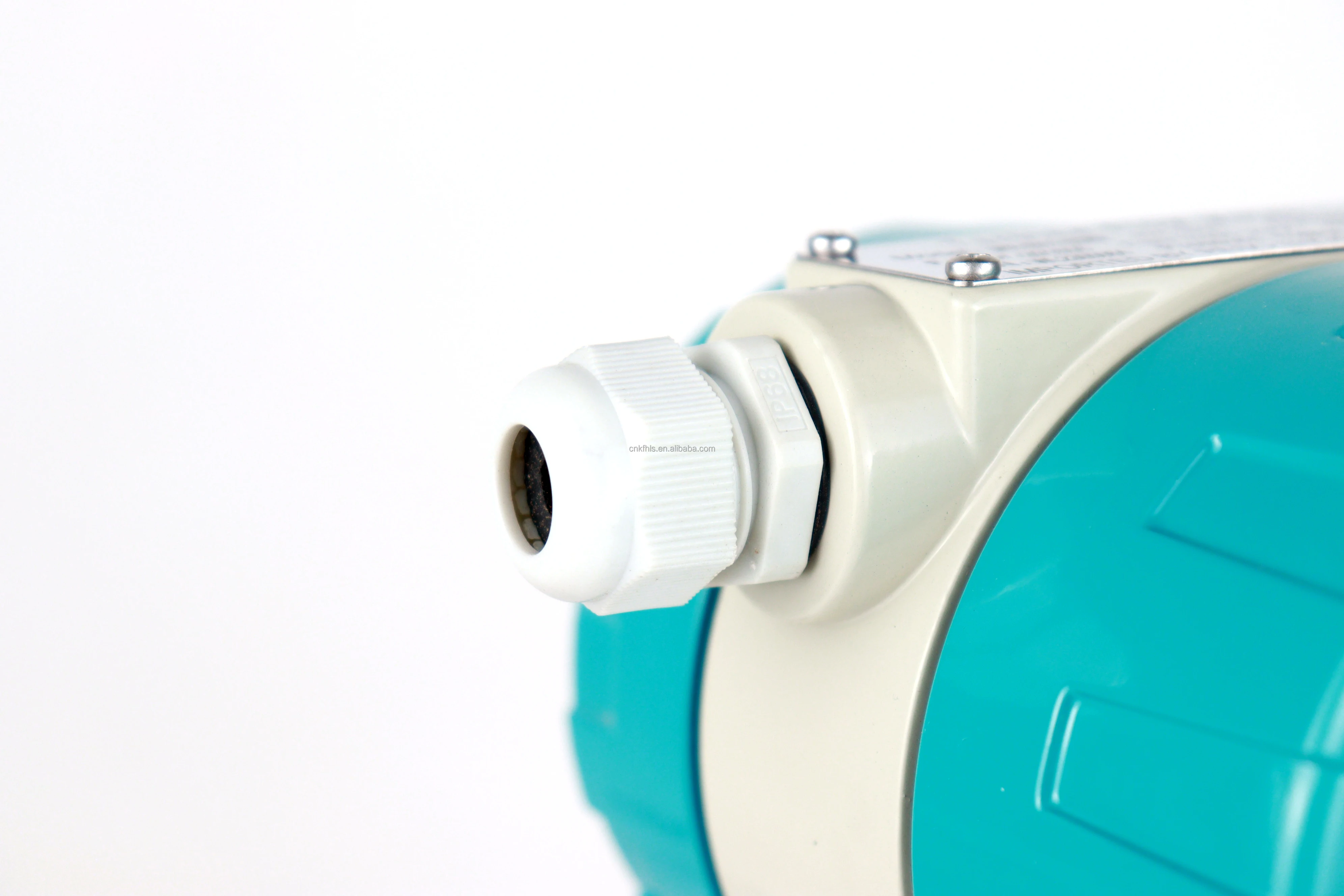

Signal Interface	Internal thread M20*1.5 NPT1/2, etc needs to be customized
Protection Level	IP65 IP68 can be customized
Explosion-proof Level	ExdllCT6 Gb
Display	LCD instantaneous flow, accumulative flow unit m³/h；L/min；L/h；Kg/h；Kg/min；GPM settable

Packing & Delivery

Company Profile

FAQ

1. Are you a manufacturer or a trading company

We are the source manufacturer of flow meter

2. Can you offer OEM/ODM product

Yes, OEM and ODM are both welcome

3. What is your minimum order quantity

There are no minimum order quantity, welcome to order according your need

4. How long about your Warranty

One year warranty and Long-term technical support

5. How about the quality

We have professional equipment and QC staffs to control the quality strictly

6. What is the standard of package

Export standard package Cartons or wooden cases

KAMBODA Digital Stainless Steel Water Flow Meter DN15/DN20/DN25/DN50 Thread Connection LCD Display Control 485 Signal OEM

Designed for professionals working from home, small business owners, and field technicians who need reliable, accurate flow measurement, the KAMBODA Digital Stainless Steel Water Flow Meter combines rugged construction with modern digital control and connectivity. This meter is built to perform in a variety of settings, from home-based workshops and lab spaces to light industrial and commercial installations where compact, low-maintenance flow monitoring is essential

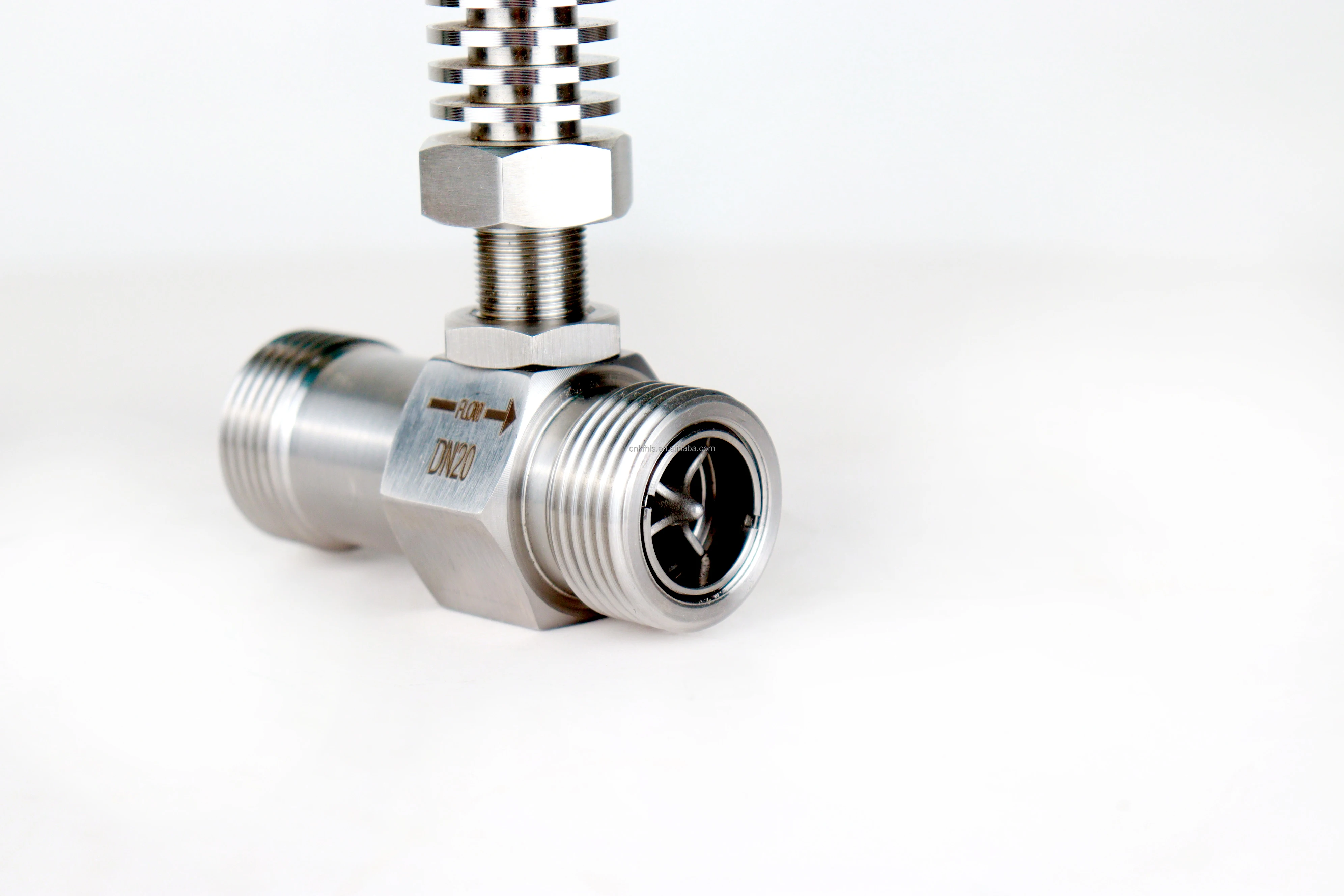

Constructed from high-quality stainless steel, the meter resists corrosion and wear, ensuring long service life even in demanding environments. The thread connection options—DN15, DN20, DN25, and DN50—allow for flexible installation on common pipeline sizes. Each size maintains a consistent standard of build quality so you can choose the right model without compromising performance. The threaded connections make it easy to replace or upgrade existing inline fittings without complex plumbing work

The clear LCD display provides instant, easy-to-read information. You can see real-time flow rate and totalized volume at a glance. The display uses common symbols and numerals, so there’s minimal learning curve. Large digits improve visibility in dimly lit areas, while a simple menu structure lets you navigate and set parameters quickly. This is ideal for those working from home who need a straightforward interface that doesn’t require specialist training

Precision is a key feature. The meter offers accurate measurement across its operating range, making it suitable for monitoring water use in small facilities, performing basic process control, or managing experimental setups. Stable performance reduces the need for frequent verification and helps maintain consistent results. For users tracking consumption or troubleshooting system performance, dependable accuracy is a major advantage

The device includes a 485 (RS-485) digital signal output for seamless integration with remote controllers, data loggers, and building management systems. This industrial-grade communication option supports long-distance transmission and multi-drop networking, so multiple meters can be linked to a central controller. The 485 interface is commonly used in professional setups, offering reliable digital data transfer and compatibility with many monitoring platforms

Control features are built into the meter to support automated tasks. You can set thresholds, alarms, or control outputs based on flow conditions. That makes it useful for home-based professionals who automate parts of their workflow or for small businesses that want to streamline operations. The control functions are straightforward, and with OEM customization available, the unit can be tailored to specific application needs to match unique process requirements

OEM support from KAMBODA means manufacturers and system integrators can request custom firmware, calibration, or housing options. That flexibility allows the meter to be embedded into bespoke systems or re-branded for resale. OEM services also cover packaging, labeling, and documentation adjustments to fit particular markets. For those integrating these meters into larger systems, KAMBODA’s OEM options simplify achieving a cohesive product offering

Installation is user-friendly. Threaded connections fit standard piping, and the meter’s compact form factor minimizes space requirements. Mounting brackets and basic hardware are compatible with typical setups, and calibration can be performed on-site when needed. The meter’s design balances robustness with practicality, so it is tough enough for semi-industrial use yet compact enough to suit a home workshop environment

Maintenance needs are modest. Stainless steel construction reduces corrosion-related problems, and the electronic components are protected within a sealed housing. Routine checks and occasional cleaning keep the meter functioning reliably. For those who prefer low-maintenance solutions, this meter offers long intervals between servicing

Safety and compliance are part of the design philosophy. Materials and electronics are chosen to meet common safety expectations for water handling and measurement equipment. Where regulatory labeling is needed, OEM options can assist in meeting local requirements. Users get a dependable meter that fits into standard safety and operational practices

The KAMBODA Digital Stainless Steel Water Flow Meter DN15/DN20/DN25/DN50 offers a balanced mix of accuracy, durability, and connectivity. Its stainless steel build, threaded fittings, clear LCD display, and RS-485 communication make it a practical choice for professionals working from home, small businesses, and integrators seeking a reliable OEM-capable solution. The meter handles everyday measurement tasks with precision, supports automation and remote monitoring, and is backed by customization options to match specific project needs. Choose KAMBODA when you want a straightforward, robust flow meter that integrates easily into real-world systems and delivers consistent performance
